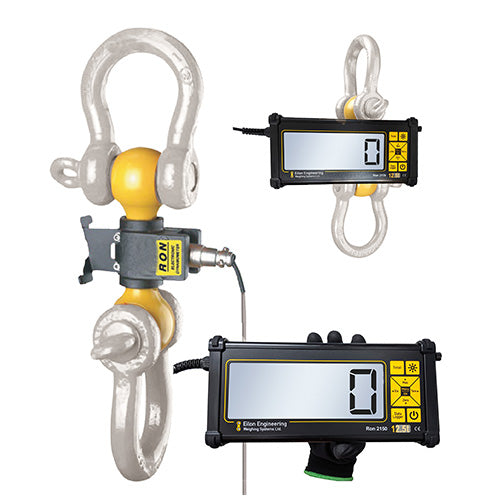

Ron Wired Dynamometer – Precision Load Monitoring with Large 2” Display
Experience the perfect balance between compact design and maximum visibility with this unique Ron dynamometer: a small and lightweight load cell combined with a robust 2” (50mm) backlit aluminum display for excellent readability from a distance, even in demanding environments.
Engineered with a fatigue-rated load cell and a 5:1 safety factor, this system delivers exceptional durability and operational safety for industrial applications requiring precise load measurement.
With high accuracy (±0.1% of full scale), this dynamometer ensures reliable, repeatable results in the most challenging conditions.
Its signature 90-degree shackle hole design reduces load cell bending, optimizing performance in low headroom applications by enhancing both accuracy and structural safety.
A range of customizable options is available, including data logging, serial/USB communication, secondary displays, and more—providing the flexibility needed for integrated load monitoring systems.
Share
Key Features
Key Features
5 year warranty
Portable: Lightweight and small. Available with Pelican™ carrying case.
Highly Accurate: ± 0.1% of full range - important for early overload detection.
Flexible: Indicator can be hand-held or attached to load cell
Readable: Large digits can be read from a distance.
Excellent battery life: Up to 2000 Hours (3x AA batteries)
Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
Robust: Heavy duty designs with shock absorbing mechanisms.
Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
Minimal Headroom loss: Smallest on the market - important for indoor applications.
Short delivery time: 48-72 hours.
More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.
Dimensions
Dimensions
