Ron StageMaster 5000 – Wired Load Monitoring System with Single-Cable Architecture

The Ron StageMaster 5000 is a high-precision wired load monitoring system, engineered for permanent and long-term installations requiring uncompromising reliability and real-time control.

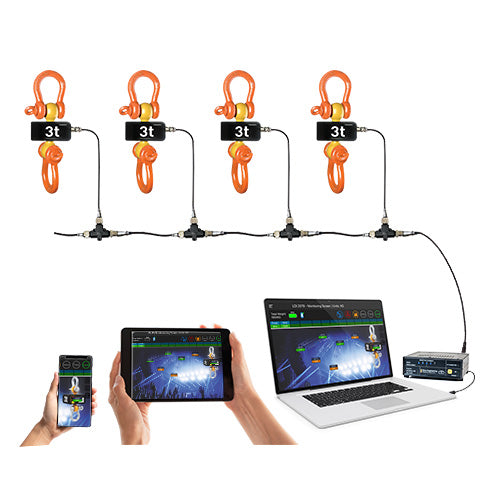

Built with fatigue-rated load cells, it ensures long-term structural integrity and safe performance under repeated load cycles. Its single-cable design simplifies installation and reduces failure points—making it an ideal solution for fixed rigging and infrastructure monitoring.

Key Features:

• Ultra-fast response time – monitors up to 200 load cells per second

• Exceptional accuracy – ±0.1% of full scale

• Continuous real-time monitoring – 24/7/365, no sleep or standby modes

• Fatigue-rated sensors – optimized for long-term structural applications

Whether for theaters, arenas, or industrial environments, the Ron StageMaster 5000 offers precision, safety, and speed—all through a robust and efficient wired system trusted by professionals worldwide.

Key Advantages

SAFETY

• True Continuous Monitoring
  The RSM 5000 G4 delivers 24/7/365 real-time load monitoring, with no sleep or standby modes—a critical safety requirement to prevent overloads. Powered by standard AA batteries, it offers up to 5,000 hours of continuous operation (optional 10,000 hours).

• Fatigue-Rated Load Cells
  All Eilon Engineering load cells are fatigue rated, ensuring the ability to withstand long-term cyclic loading without compromising steel integrity—ideal for permanent installations and high-stakes environments.

• Independent Load Cell Communication
  Each load cell transmits data individually and directly to the Central Receiver, ensuring system-wide integrity even if a single load cell is compromised. Available in both wired and wireless systems.

• High-Strength Aerospace-Grade Materials
  Constructed from aerospace-quality alloy steel with a polyurethane coating for superior durability and environmental resistance.

• Perpendicular Shackle Hole Design (90°)
  Minimizes the effects of external moments, significantly improving measurement accuracy and structural safety.

• Proven Technology Since 1976
  With over three decades of industry leadership, Ron StageMaster systems are trusted by Fortune 500 companies, global tours, and aerospace leaders for reliable load monitoring in mission-critical environments.

PERFORMANCE

• Scalable System Architecture
  Supports up to 200 load cells per monitoring station, with unlimited monitoring stations supported across venues or zones.

• Ultra-Low Latency
  Monitors all connected load cells at a rate of 200 readings per second, ensuring instantaneous detection of critical load changes.

• Long Battery Life
  Standard battery life of up to 5,000 hours at 1Hz sampling rate (optional 10,000 hours), supporting long-duration deployments.

• Automatic E-Stop Integration
  Seamless connection to any controller allows for automated emergency stops and overload/underload alerts (visual and audible).

• Web-Based Monitoring
  Accessible from any location worldwide via a web server interface, compatible with PCs, tablets, and smartphones.

• Real-Time Load Mapping
  Display all connected load cells on a single live stage-plan overlay, enabling immediate identification of overload locations and triggering motor stops via set points.

• Group Monitoring
  Define and manage up to 15 independent load groups, each with its own thresholds, set points, and display view.

• Unlimited Data Logging
  Automatically record and store months of continuous measurement data, fully downloadable for analysis and compliance.

• Group Plan Visualization
  View custom rigging layouts for each group with dedicated background images (available for systems with 50+ load cells).

• SMS Alerts
  Receive real-time SMS notifications in the event of overload detection.

FLEXIBILITY

• Modular & Expandable
  The system grows with your needs. Add new load cells at any time without reconfiguring the system.

• Cross-System Integration
  Combine load cells from multiple Ron StageMaster systems or split a large system into smaller, independently operated zones. Mix and match wired and wireless load cells, different capacities, and hoist-integrated or classic models seamlessly.

• Wide Range of Capacities
  Load cells are available in capacities ranging from 1t to 300t, with safety factors of 5:1, 10:1, and beyond.
