Ron StageMaster 6000 Shackle Pin

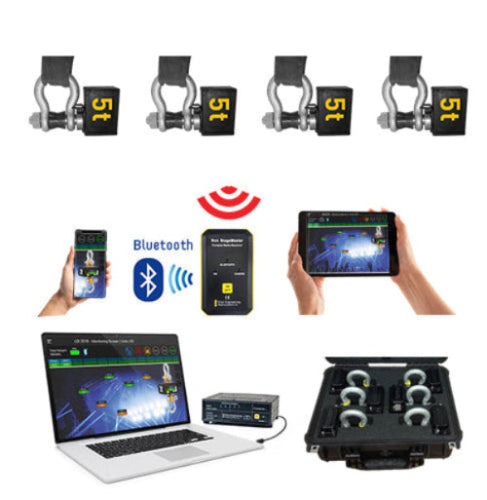

Ron StageMaster 6000 G5 – Wireless Multi-Point Load Monitoring System

The Ron StageMaster 6000 G5 is a wireless, multi-point load monitoring system featuring fatigue-rated load cells, high-accuracy measurement, and exceptional battery life—engineered to meet the demanding needs of the entertainment and rigging industries.

Purpose-built for stage rigging applications, the system enables riggers to achieve precise control over load distribution and balance, verify equipment weights, and raise rigging into position—all in a single, streamlined operation.

Key Advantages

Safety First

• True Continuous Monitoring
  Up to 5,000 hours of continuous operation (optional 10,000 hours) using standard AA batteries. The system features always-on transmission, with no sleep or standby modes, ensuring uninterrupted monitoring—critical for overload prevention and operational safety.

• Fatigue-Rated Load Cells
  All Ron StageMaster load cells are fatigue-rated, designed to withstand countless load cycles over extended periods—ideal for fixed and long-term installations, offering users long-term structural integrity and peace of mind.

• Independent Data Transmission
  Each load cell transmits directly and independently to the central receiver. This eliminates single points of failure—a critical advantage for both wired and wireless systems.

• Aerospace-Grade Materials
  Load cells are manufactured from aerospace-quality alloy steel, ensuring exceptional strength, durability, and resistance to wear.

• 90° Perpendicular Shackle Design
  Reduces external moments and bending, enhancing both safety and accuracy.

• Proven Technology Since 1976
  With decades of innovation and a client list including Fortune 500 corporations, global tours, and aerospace leaders, Ron StageMaster is the industry's trusted choice.

Performance & Control

• Virtually Unlimited Load Cells
  Monitor up to 200 load cells per PC or laptop station, with support for unlimited monitoring stations across venues.

• Exceptional Battery Life
  Up to 5,000 hours of transmission at 1 Hz (10,000 hours optional).

• Seamless Controller Integration
  Works with any controller to trigger automatic E-stop or visual/audible alarms in case of overload or underload.

• Mobile Compatibility
  Monitor loads on-the-go via tablet and smartphone.

• Real-Time Load Mapping
  View a live load map of the entire rig on one screen—overlaid on the stage-plan layout. Immediately identify overloads and trigger motor stop protocols via programmable set points.

• Multiple Load Groups
  Define up to 15 groups, each with individual overload settings and real-time monitoring views.

• Advanced Data Logging
  Store and download months of continuous data for reporting and analysis.

• Group Screen View
  Visualize specific rigging groups on their unique background layouts (included in systems with 50+ load cells).

• SMS Overload Alerts
  Receive real-time SMS notifications in the event of an overload.

Unmatched Flexibility

• Easy System Expansion
  Add new load cells to any existing system effortlessly.

• Modular Integration
  Combine systems across venues or split a single system into independent zones. Compatible across wired/wireless, hoist-integrated, and classic load cells—regardless of capacity or type.

• Wide Range of Capacities
  Load cells available from 1t to 300t, with safety factors of 5:1, 10:1, or higher, based on application.

Technical Specifications
